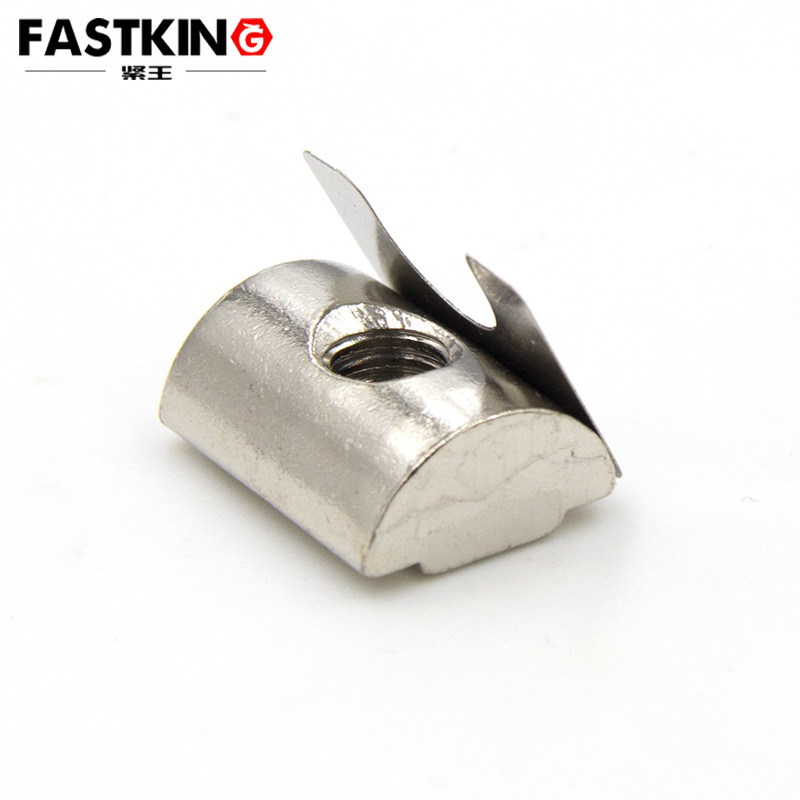

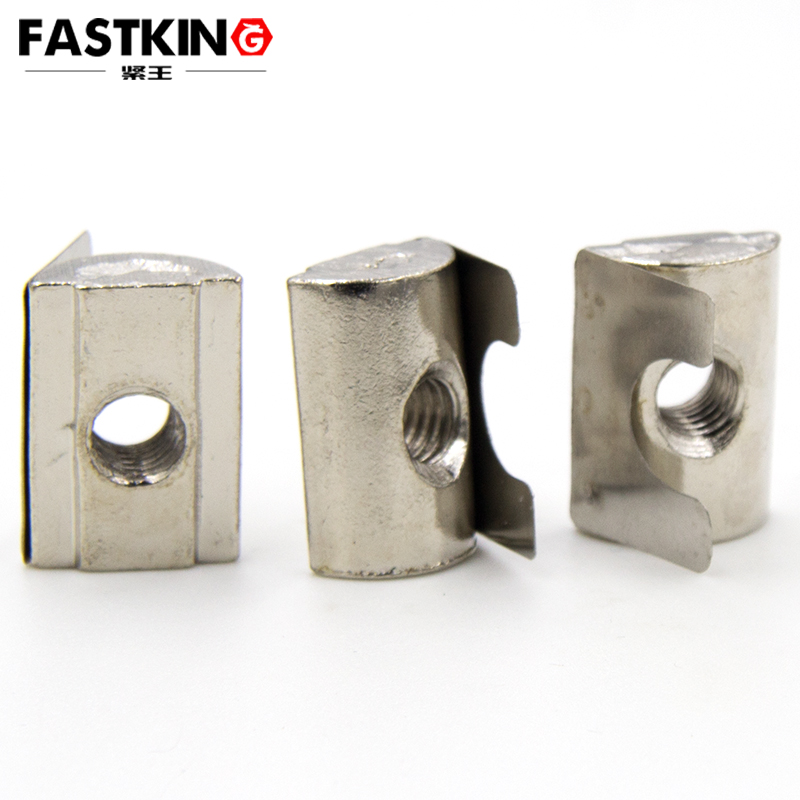

From the perspective of structural design, the core advantage of the T-profile spring nut lies in its "integrated elastic structure". Its main body is usually made of high-strength galvanized steel or stainless steel, which ensures load-bearing capacity and corrosion resistance. The top is equipped with a threaded connection hole that can be adapted to bolts of different specifications; the bottom is innovatively designed with two symmetrical elastic springs, and the ends of the springs are provided with small barbs. This structure can perfectly fit the notch of the T-profile — no pre-drilling or welding is required during installation. It is only necessary to push the spring nut into the specified position along the notch of the T-profile, and the elastic springs will be tightly clamped inside the notch under the action of their own tension, forming a stable positioning. This not only prevents the displacement of components during the installation process but also greatly simplifies the operation procedure.
In terms of performance, the T-profile spring nut exhibits the dual characteristics of "high-efficiency adaptability" and "stable reliability". On one hand, it has good versatility — spring nuts of the same specification can be adapted to T-profiles of different thicknesses in the same series, eliminating the need to frequently replace connectors according to the profile size, which reduces inventory costs and the difficulty of model selection. On the other hand, the design of the elastic springs endows it with a certain buffering capacity. In vibrating environments (such as automated production lines and mechanical equipment), it can effectively absorb impact forces, reduce the risk of bolt loosening, and ensure the long-term stability of the connection part. In addition, the use of high-quality materials enables it to work normally in the temperature range of -40℃ to 80℃. Whether in humid workshop environments or dry outdoor frames, it can maintain excellent rust resistance and extend its service life.
From the perspective of application scenarios, the T-profile spring nut has an extremely wide range of adaptability. In the field of industrial automation, it is a key component for the construction of robot workstations and conveyor line frames. It can quickly realize the connection between profiles and panels as well as motor brackets, facilitating later equipment maintenance and transformation. In the exhibition industry, the booth frames built with spring nuts can be flexibly disassembled and reassembled, reducing transportation and storage costs. In the new energy field, during the construction of photovoltaic brackets and energy storage equipment frames, the welding-free feature of spring nuts not only improves construction efficiency but also avoids damage to the profile structure caused by the welding process, ensuring the long-term safe operation of the equipment.
It is worth noting that when selecting and using T-profile spring nuts, three core points should be paid attention to according to the actual application scenarios: First, material matching — for environments with strong corrosion (such as chemical workshops and outdoor areas), 304 stainless steel should be preferred; for ordinary dry environments, galvanized steel can be selected to balance performance and cost. Second, specification adaptation — the corresponding model of the spring nut should be selected according to the notch width of the T-profile and the bolt specification to avoid connection loosening caused by mismatched specifications. Third, installation specifications — when pushing the spring nut in, it is necessary to ensure that the springs are completely clamped into the notch of the profile; when installing the bolt, the tightening force should be controlled to avoid spring deformation or profile damage caused by excessive force.
As an "efficient supporting role" in the field of industrial connection, the T-profile spring nut, with its simple structure, flexible installation method and reliable performance, provides an efficient solution for the construction of various frame structures. It not only promotes the optimization of the industrial manufacturing process but also provides convenience for the later maintenance and transformation of equipment, becoming an indispensable important component in modern industrial production.
